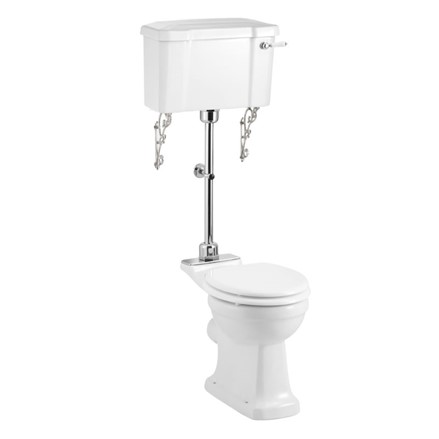

Standard Medium Level WC with 520 Lever Cistern

£675.00 RRP

Find a retailer

View technical details

Finish

SKU: P5 T33 CHR C1

Lifetime guarantee*

* Full terms & conditions here

Parts

1 x Close coupled pan (P5) – £195.00
1 x Medium level flush pipe kit including medium ornate brackets in chrome (T33CHR) (Previous code: T33 CHR) – £305.00
1 x Close Coupled / Low level cistern 51cm Ceramic Lever (incl. bottom entry cistern fittings) (C1) – £175.00

Technical Specifications
Downloads

Finish	White
Material	Vitreous China
Shape	Standard
Length	730mm
Width	510mm
Height	1420mm
Weight	40.25kg
Height Type	Standard
Rimless	No
Flush Type	Lever
Trap Option	P-trap
Compliance	Chrome plated to BS EN248:2002. Sanitary tapware. General specification for electro deposited coatings of Ni-Cr
Additional Information	The medium level wc uses a standard close coupled pan and close coupled cistern, connected with a medium level flush pipe kit T33 CHR The distance from the wall to the soil pipe is fixed and cannot be extended, except by using the extended depth cistern C30 ( this moves the pan an extra 30mm forwards) The cistern height can be varied by cutting the vertical flush pipe to length - maximum height is 1,425mm to the top of the cistern, minimum height is1,125mm. Water Inlet valve hole is located on the base of cistern tank on the right hand side Bottom inlet valve (SP5A). Back inlet valve available as optional item (SP511). SP511 : Back entry kit for C1/C3/C24, including back entry inlet valve with flexible hose and plug Dual flush cistern fittings with ceramic lever on the right. Press lever down for 6 litre flush and up for 3 litre flush. P trap standard height pan - height from floor to pan rim is 40cm. Ceramic soil connection pipes : straight connector to the wall : C29. The S trap connector bending down to the floor : C26 Cistern can be used with optional decorative Ornate Brackets T32 CHR Medium level wc must be used with standard Burlington toilet seats

Instructions - T33 CHR	Download File
Manuel d’instructions – T33 CHR (Français)	Download File
Instructions - C1	Download File
Manuel d’instructions – C1 (Français)	Download File
