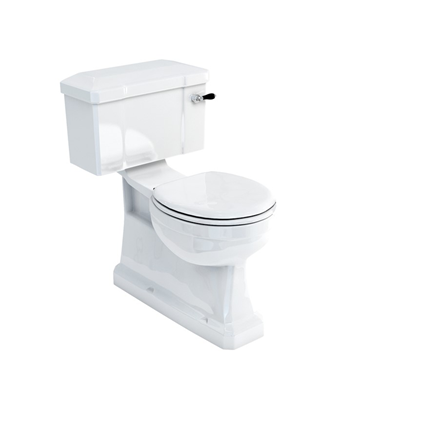

S Trap CC WC with 440 Lever Cistern

£306.20 RRP: £424.00

Find a retailer

View technical details

Finish

SKU: P18 C3

Lifetime guarantee*

* Full terms & conditions here

Parts

1 x Burlington close coupled S trap pan for floor mounted outlet pipe (P18) – £207.20 £259.00
1 x Close Coupled / Low level cistern 44 cm Ceramic Lever (incl. bottom entry cistern fittings) (C3) – £99.00 £165.00

Technical Specifications
Downloads

Finish	White
Depth	710mm
Material	Vitreous China
Width	440mm
Height	1425mm
Weight	23.6kg
Height Type	Standard
Rimless	No
Flush Type	Lever
Trap Option	S-trap
Compliance	BS EN 997:2012 WC pans and WC suites with integral trap
Additional Information	SP511 : Back entry kit for C1/C2/C3/C4/C30, including back entry inlet valve with flexible hose and plug Supplied with floor fixings. Recommended to be used with cistern tank isolation valve W25 The S trap P18 pan & C30 cistern combination should be used where the distance from the wall to the center of the soil pipe in the floor is 24cm The soil pipe is fully enclosed and not visible Water Inlet valve hole is located on the base of cistern tank on the right hand side Bottom inlet valve (SP5A). Back inlet valve available as optional item (SP511). Dual flush cistern fittings with ceramic lever on the right. Press lever down for 6 litre flush and up for 3 litre flush. Cistern connected to pan with internal bolts. Close coupled wc must be used with standard Burlington toilet seats
Additonal Information	Cistern connected to pan with internal bolts.

Instructions - C3	Download File
Manuel d’instructions – C3 (Français)	Download File
