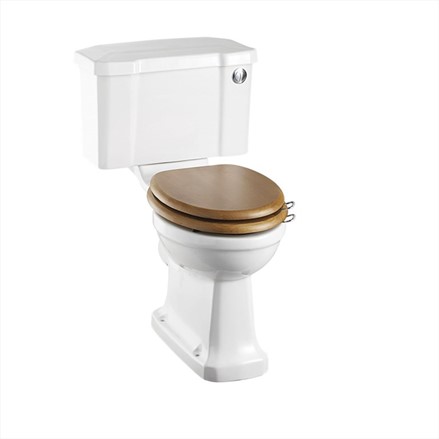

Standard CC WC with 520 Front Push Button Cistern

£228.00 RRP: £380.00

Find a retailer

View technical details

Finish

SKU: P5 C2

Lifetime guarantee*

* Full terms & conditions here

Parts

1 x Close coupled pan (P5) – £117.00 £195.00
1 x Close Coupled / Low level cistern 51 cm Front Button (incl. bottom entry cistern fittings) (C2) – £111.00 £185.00

Technical Specifications
Downloads

Finish	White
Depth	720mm
Material	Vitreous China
Shape	Standard
Width	520mm
Height	1425mm
Weight	20.2kg
Height Type	Standard
Rimless	No
Flush Type	Push Button
Trap Option	P-trap
Compliance	BS EN 997:2012 WC pans and WC suites with integral trap
Additional Information	Water Inlet valve hole is located on the base of cistern tank on the right hand side Bottom inlet valve (SP5A). Back inlet valve available as optional item (SP511). SP511 : Back entry kit for C1/C3/C24, including back entry inlet valve with flexible hose and plug P trap standard height pan - height from floor to pan rim is 40cm. Regal Height pan ( floor to pan rim height 48cm ) available : P12 Ceramic soil connection pipes : straight connector to the wall : C29. The S trap connector bending down to the floor : C26 Metal connection bracket. Close coupled wc must be used with standard Burlington toilet seats. Does not include toilet seat, please add on your choice of seat Supplied with floor fixings.

Instructions - C2	Download File
Manuel d’instructions – C2 (Français)	Download File
