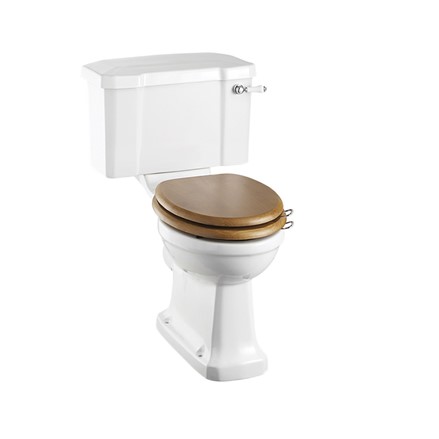

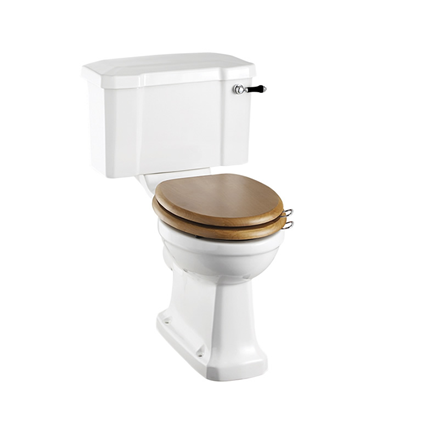

Rimless Close Coupled WC with 520 Lever Cistern

£328.00 RRP
View technical details
Finish
  • tickLifetime guarantee*
Parts
  • 1 x Burlington Rimless Close Coupled Pan (P20) – £219.00
  • 1 x Close Coupled / Low level cistern 51cm Ceramic Lever (incl. bottom entry cistern fittings) (C1) – £109.00
Finish White
Material Vitreous China
Length 730mm
Width 520mm
Height 780mm
Weight 30.4kg
Height Type Standard

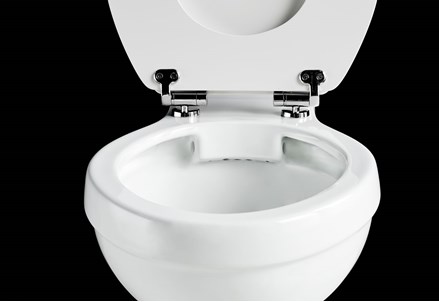

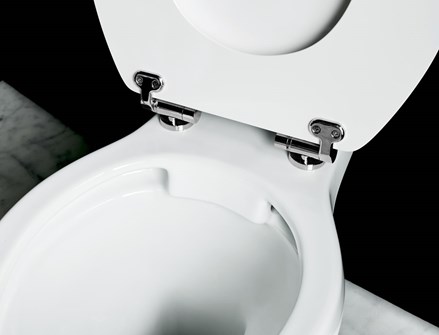

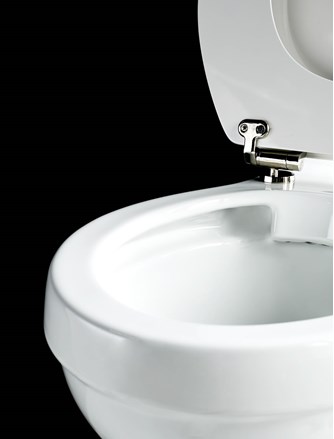

Rimless Yes
Trap Option P-trap
Compliance BS EN 997:2012 WC pans and WC suites with integral trap Chrome plated to BS EN248:2002 Sanitary tapware. General specification for electro deposited coatings of Ni-Cr
Additional Information
  • Water Inlet valve hole is located on the base of cistern tank on the right hand side Bottom inlet valve (SP5A). Back inlet valve available as optional item (SP511).
  • SP511 : Back entry kit for C1/C3/C24, including back entry inlet valve with flexible hose and plug
  • Dual flush cistern fittings with ceramic lever on the right.
  • Press lever down for 6 litre flush and up for 3 litre flush.
  • P trap standard height pan - height from floor to pan rim is 40cm. Regal Height pan ( floor to pan rim height 48cm ) available : P12 Ceramic soil connection pipes : straight connector to the wall : C29. The S trap connector bending down to the floor : C26
  • Metal connection bracket.
  • Close coupled wc must be used with standard Burlington toilet seats
  • Supplied with floor fixings.
Instructions - C1 Download File
Manuel d’instructions – C1 (Français) Download File
