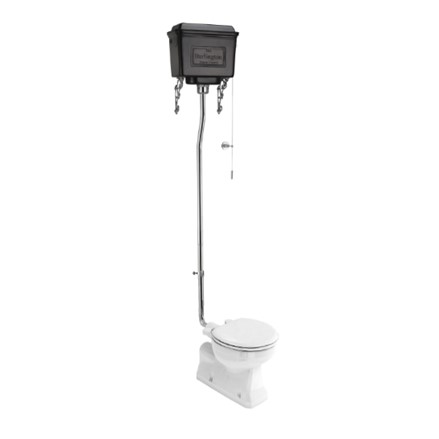

Standard High Level WC with Dual Flush Black Aluminium Cistern

£955.20 RRP: £1329.00

Find a retailer

View technical details

Finish

SKU: P2 T30 CHR T60 BLA

Lifetime guarantee*

* Full terms & conditions here

Parts

1 x Black aluminium high level cistern including cistern fittings (T60BLA) (Previous code: T60 BLA) – £631.20 £789.00
1 x High level flush pipe kit including lever, rigid pull rod, flush pipe, reverse screw cistern connector, stopper and ornate brackets (T30CHR) (Previous code: T30 CHR) – £195.00 £325.00
1 x Low/high level pan (P2) – £129.00 £215.00

Technical Specifications
Downloads

Finish	White
Material	Vitreous China
Shape	Standard
Length	570mm
Width	430mm
Height	2400mm
Weight	37.5kg
Height Type	Standard
Rimless	No
Flush Type	Pull Rod
Trap Option	P-trap
Compliance	BS EN 997:2012 WC pans and WC suites with integral trap Chrome plated to BS EN248:2002 Sanitary tapware. General specification for electro deposited coatings of Ni-Cr
Additional Information	The high level level wc uses a standard low level pan ( P2 ) and specialed high level cistern, connected with a medium level flush pipe kit T30 CHR The flush mechanism comes in two options : dual flush rod pull cistern C5, or single flush chain pull cistern C28PK A special flush pipe kit that allows the cistern to be placed on a wall next to the pan is available : Angled Flush Pipe Kit T34 CHR Low Level wc can be used where the soil pipe is located in the floor. The pan can be located over the soil pipe by cutting the horizontal flush pipe to length. The cistern height can be varied by cutting the vertical flush pipe to length - maximum height is 2,380mm to the top of the cistern, minimum height is 1,625mm. Water Inlet valve hole is located on the base of cistern tank on the right hand side Bottom inlet valve (SP5A). Back inlet valve available as optional item (SP511). P trap standard height pan - height from floor to pan rim is 40cm. Regal Height pan ( floor to pan rim height 48cm ) available : P16 Ceramic soil connection pipes : straight connector to the wall : C29. The S trap connector bending down to the floor : C26 Cistern can be used with optional decorative Ornate Brackets T32 CHR High level wc can be used with standard Burlington toilet seats or with the Throne seats ( S14 & S15 ) Supplied with floor fixings.

Instructions - T60 BLA	Download File
Manuel d’instructions – T60 BLA (Français)	Download File
Instructions - T30 CHR	Download File
Manuel d’instructions – T30 CHR (Français)	Download File
