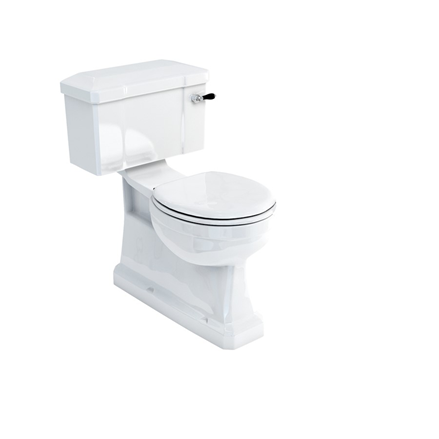

S Trap CC WC with 520 Rear Entry Lever Cistern

£518.00 RRP
Find a retailer
Find a retailer
Use my current location
View technical details
Finish
P18 C30
  • tickLifetime guarantee*

* Full terms & conditions here

Parts
  • 1 x Burlington close coupled S trap pan for floor mounted outlet pipe (P18) – £259.00
  • 1 x Extended depth close coupled / low level cistern 52cm wide & ceramic lever (incl back entry cistern fittings) (C30) – £259.00
Finish White
Material Vitreous China
Length 730mm
Width 520mm
Height 780mm
Weight 38.1kg
Height Type Standard
Rimless No
Flush Type Lever
Trap Option S-trap
Compliance BS EN 33:2011 Pedestal W.C. pans with close-coupled flushing cistern BS EN 997:2012 WC pans and WC suites with integral trap
Additional Information
  • Supplied with floor fixings.
  • Recommended to be used with cistern tank isolation valve W25
  • If the wall to soil pipe distance is 21cm, then use the combination of P18&C1/C2/C3/C4
  • The S trap P18 pan & C30 cistern combination should be used where the distance from the wall to the center of the soil pipe in the floor is 24cm The soil pipe is fully enclosed and not visible
  • Water Inlet valve hole is located on the base of cistern tank on the right hand side Bottom inlet valve (SP5A). Back inlet valve available as optional item (SP511). SP511 : Back entry kit for C30, including back entry inlet valve with flexible hose and plug
  • Dual flush cistern fittings with ceramic lever on the right. Press lever down for 6 litre flush and up for 3 litre flush. Cistern connected to pan with internal bolts.
  • Close coupled wc must be used with standard Burlington toilet seats
Instructions - C30 Download File
Manuel d’instructions – C30 (Français) Download File
