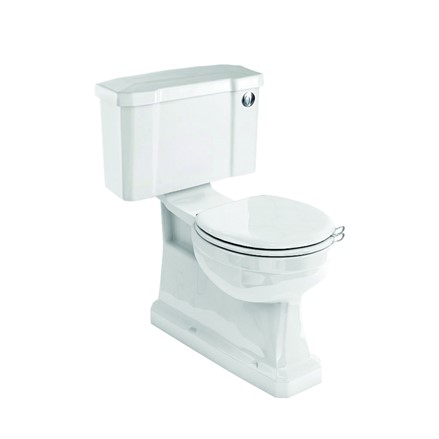

S Trap CC WC with 440 Front Push Button Cistern

£318.20 RRP: £444.00

Find a retailer

View technical details

Finish

SKU: P18 C4

Lifetime guarantee*

* Full terms & conditions here

Parts

1 x Burlington close coupled S trap pan for floor mounted outlet pipe (P18) – £207.20 £259.00
1 x Close Coupled / Low level cistern 44 cm Front Button (incl. bottom entry cistern fittings) (C4) – £111.00 £185.00

Technical Specifications
Downloads

Finish	White
Depth	710mm
Material	Vitreous China
Width	440mm
Height	1425mm
Weight	38.1kg
Height Type	Standard
Rimless	No
Flush Type	Push Button
Trap Option	S-trap
Compliance	BS EN 33:2011 Pedestal W.C. pans with close-coupled flushing cistern BS EN 997:2012 WC pans and WC suites with integral trap
Additional Information	Press lever down for 6 litre flush and up for 3 litre flush. Cistern connected to pan with internal bolts. Close coupled wc must be used with standard Burlington toilet seats The S trap P18 pan & C1/C2/C3/C4 cistern combination should be used where the distance from the wall to the center of the soil pipe in the floor is 21cm; If the wall to soil pipe distance is less than 24cm, then use the ombinatin of P18 pan & C30 cistern tank SP511 : Back entry kit for C1/C2/C3/C4/C30, including back entry inlet valve with flexible hose and plug Dual flush cistern fittings with flush button on the right. Supplied with floor fixings. Recommended to be used with cistern tank isolation valve W25 The S trap P18 pan & C30 cistern combination should be used where the distance from the wall to the center of the soil pipe in the floor is 24cm The soil pipe is fully enclosed and not visible Water Inlet valve hole is located on the base of cistern tank on the right hand side Bottom inlet valve (SP5A). Back inlet valve available as optional item (SP511).

Instructions - C4	Download File
Manuel d’instructions – C4 (Français)	Download File
