Cleaver Radiator

£639.00 RRP
  • tick5 year guarantee*

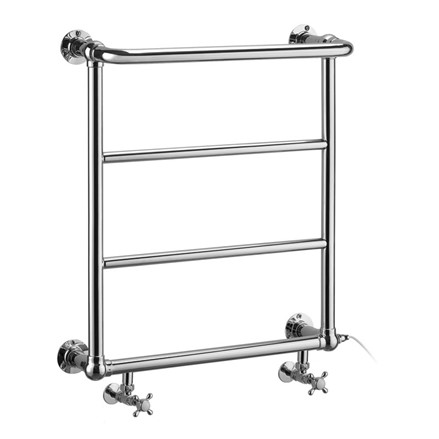

  • 1 x Cleaver - chrome (R3 CHR) – £639.00


T = 50°c Watts

T = 55°c Watts

T = 60°c Watts




475 540 600 2047 7.2


356 400 445 1518 5.0


219 250 280 955 2.9


180 210 240 819 2.4


164 190 210 717 2.2


218 250 280 955 2.4


235 268 300 1024 3.4
Maximum capacity when using a heating element is 90% of full capacity.
Please consult the installation guide for each model.
Finish Chrome
Material Steel
Length 235mm
Width 642mm
Height 720mm
Weight 7kg
Compliance BS EN442-1:2003 Specification for radiators and convectors. Technical specifications and requirements BS EN442-2:2003 Specification for radiators and convectors. Test methods and rating Chrome plated to BS EN248:2002 Sanitary tapware. General specification for electro deposited coatings of Ni-Cr
Additional Information
  • Output : 717 BTU / 164 watts (△T=50℃)
  • Diameter of tubes is 32mm.
  • For technical information on the summer heating kit please refer to the summer heating kit sectio
  • Distance from wall to the rail is 110mm.
  • Fill the radiator approximately 90% (2.0L) with an anti-rust mixture if the radiator is to be used for electric heating only (not connected to a central heating system)
  • Includes all brackets and fixings. High quality chrome plated finish. Valves are required. These are not included.
  • Designed to be plumbed into your central heating system. Operating pressure up to 8 bar.(Certified by BEN N.L)
  • Maximum working temperature:95℃ 440mm plumbing pipe centers
Instructions - R3 CHR Download File
Manuel d’instructions – R3 CHR (Français) Download File
